Product information

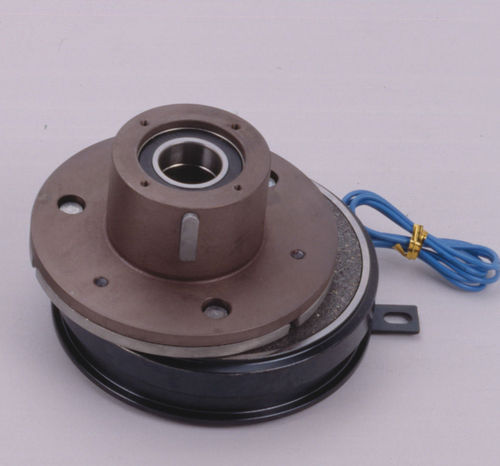

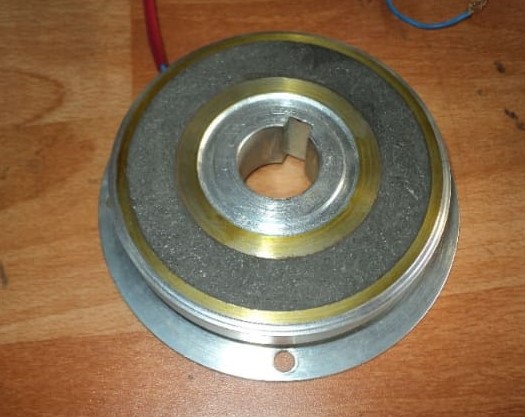

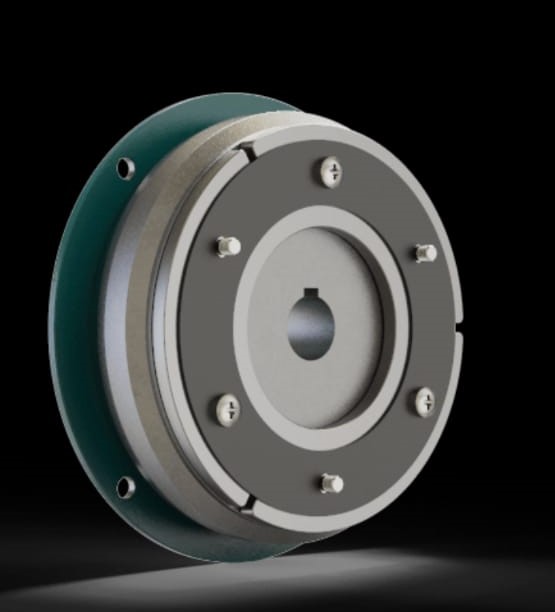

- Name: SINGLE DISC ELECTROMAGNETIC CLUTCHE - SHAFT MOUNTED
- Category: GR.SDC/GP SMC Series
SINGLE DISC ELECTROMAGNETIC CLUTCHE
In an Electromagnetic Single Disc Clutch when the current is applied a strong magnetic field is generated and the armature is pulled towards the rotor for a backlash free transmission of torque. The spring action of the diaphragm ensures a rapid disengagement free from any residual torque.
Technical Features
- Low maintenance
- High operating frequency
- Available with various voltage options (Std. coil voltage 24 Vdc)
- Dry operation
- Torque 1 NM to 2500 NM
- Simple design and construction
- Asbestos free friction material
- Coil with class 'F'Insulation
- With pre-stressed diaphragm (spring) made from hardened spring steel
- Horizontal and vertical mounting
- Available in various clutch configurations
- Zero backlash
Applications
- Textile machinery
- Printing machines
- Pharmaceutical machines
- Conveyors
- Machine tools
- Cranes/Hoists/Material handling equipment
- Wire-drawing machines and various other applications
- Packaging machines
