Product information
- Name: SINGLE DISC ELECTROMAGNETIC BRAKE
- Category: GP SBD Series

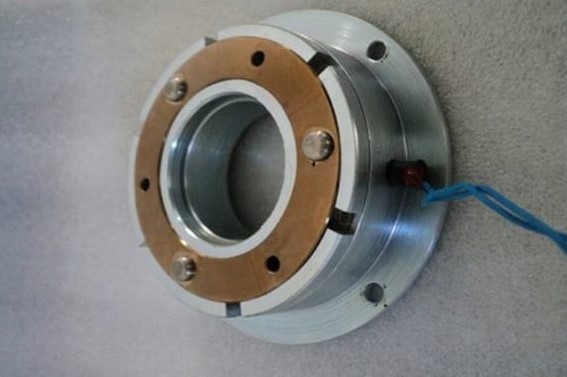

SINGLE DISC ELECTROMAGNETIC BRAKE
In an Electromagnetic Single Disc Brake, when the current is applied the spring (diaphragm) loaded armature is directly pulled against the friction liner of the stationary brake body due to the resulting torque causing the rotating part to come to an instant halt. When the current is switched off the spring action of the diaphragm ensures a rapid disengagement free from any residual torque.
Technical Features
- Zero backlash
- Torque 1 NM to 2500 NM
- Available with various voltage options (Std. coil voltage 24 Vdc)
- Dry operation
- Simple design and construction
- High operating frequency
- Coil with class 'F'Insulation
- Armature design can be modified
- With pre-stressed diaphragm (spring) made from hardened spring steel
- Horizontal and vertical mounting
- Low maintenance
- Asbestos free friction material
Applications
- Machine tools
- Brake motors
- Conveyors
- Packaging machines
- Printing machines
- Textile machinery
- Cranes/Hoists/Material handling equipment
- Wire-drawing machines and various other applications
- Pharmaceutical machines
